Quartz Group of Minerals

The Quartz group of minerals primarily consists of quartz, tridymite, cristobalite, coesite, and stishovite. These minerals share the chemical composition SiO₂ but differ in their physical and structural properties due to variations in their crystal structure.

Below are physical properties of quartz:

1. Crystal System:

Quartz: Hexagonal (trigonal subdivision)

 Tridymite (Orthorhombic),

Cristobalite (Tetragonal).

2. Habit:

Quartz crystals commonly form hexagonal prisms with pyramidal terminations.

It also occurs in massive, granular, or cryptocrystalline forms (e.g., chalcedony, jasper).

3. Colour:

Quartz is typically colourless or white.

Impurities cause various colours:

Amethyst: Purple

Citrine: Yellow

Smoky Quartz: Brown/gray

Rose Quartz: Pink

4. Luster:

Vitreous (glassy) on crystal surfaces.

Waxy or dull in cryptocrystalline varieties.

5. Hardness:

7 on the Mohs scale, making quartz relatively hard and resistant to scratching.

6. Fracture & Cleavage:

Quartz does not exhibit cleavage but has a conchoidal fracture.

7. Specific Gravity:

Ranges between 2.65–2.66, depending on impurities.

8. Transparency:

Quartz can be transparent, translucent, or opaque depending on impurities and inclusions.

9. Refractive Index:

Quartz has a refractive index of 1.544–1.553.

10. Tenacity:

Quartz is brittle, meaning it fractures easily under stress.

11. Streak:

Quartz has a colourless streak, regardless of its external color.

12. Piezoelectric Property:

Quartz exhibits piezoelectricity, meaning it generates an electric charge under mechanical stress. This property makes it valuable in electronics.

13. Solubility:

Insoluble in water and weak acids; slightly soluble in strong hydrofluoric acid (HF).

14. Thermal Stability:

Quartz is stable at high temperatures. Its polymorphs, such as tridymite and cristobalite, form at even higher temperatures.

Varieties of Quartz:

Quartz occurs in a wide range of varieties, both crystalline and cryptocrystalline, based on color, transparency, and inclusions.

Below is a detailed classification:

1. Crystalline Varieties of Quartz

These varieties are well-crystallized, with visible crystal forms.

Colour Varieties:

Amethyst: Purple quartz, colored by trace amounts of iron and irradiation.

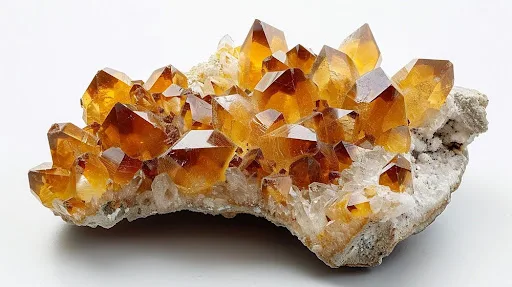

Citrine: Yellow to orange quartz, caused by ferric iron.

Rose Quartz: Pink quartz, due to titanium, manganese, or microscopic inclusions.

Smoky Quartz: Gray to black quartz, caused by natural irradiation.

Milky Quartz: White or cloudy quartz, due to microscopic inclusions of fluid or gas.

Transparent Quartz: Colorless and transparent quartz.

Special Varieties:

Ametrine: A mix of amethyst and citrine in one crystal.

Prasiolite: Green quartz, often heat-treated amethyst or natural from specific locations.

Blue Quartz: Quartz with blue inclusions, usually from minerals like rutile or crocidolite.

2. Cryptocrystalline Varieties of Quartz

These varieties consist of microscopic quartz crystals, forming compact masses. They are often referred to as chalcedony group.

Chalcedony

A translucent variety with a waxy luster, often light-colored.

Colour Varieties:

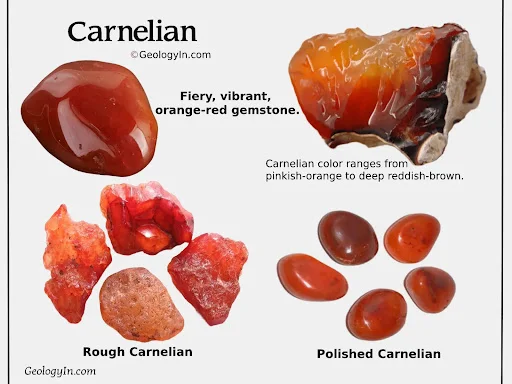

Carnelian: Orange to red chalcedony, colored by iron oxide.

Sard: Brownish-red chalcedony, darker than carnelian.

Chrysoprase: Bright green chalcedony, colored by nickel.

Heliotrope (Bloodstone): Green chalcedony with red spots of iron oxide.

Banded Varieties:

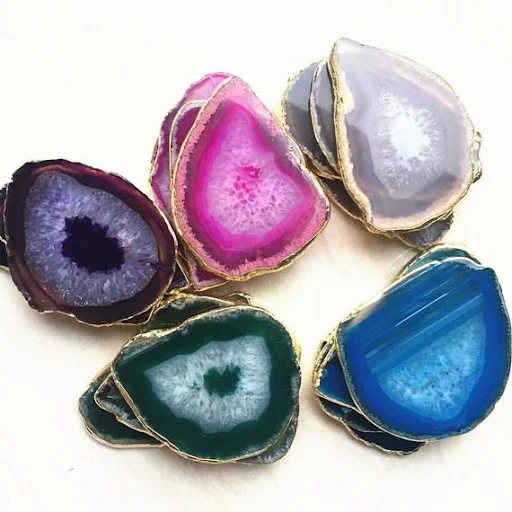

Agate: Banded or layered chalcedony in various colors.

Onyx: Parallel-banded chalcedony, often black and white.

Opaque Varieties:

Jasper: Opaque chalcedony with various colors due to impurities.

Moss Agate: Chalcedony with moss-like inclusions of minerals.

3. Microcrystalline Varieties

These are compact masses of quartz without visible crystals:

Chert: A fine-grained, often dull quartz found in sedimentary rocks.

Flint: A darker variety of chert.

Novaculite: A dense, fine-grained variety used for sharpening tools.

4. Synthetic Varieties

Man-made quartz varieties often mimic natural forms:

Fused Quartz: Produced by melting natural quartz.

Hydrothermal Quartz: Lab-grown quartz for industrial and gem use.

The color variations in quartz varieties are primarily caused by impurities, structural defects, or natural irradiation. Despite having the same chemical composition (SiO₂), these factors alter the way quartz absorbs and reflects light, resulting in diverse colors.

Following are the reasons for these variations:

1. Impurities in the Crystal Structure

Impurities are the most common reason for color variations in quartz. These impurities replace silicon or oxygen in the crystal lattice or are present as inclusions.

Iron (Fe):

Causes amethyst (purple) due to ferric iron (Fe³⁺) combined with natural irradiation.

Produces citrine (yellow to orange) due to ferric iron in a different oxidation state.

Titanium (Ti), Manganese (Mn):

Responsible for the pink color of rose quartz.

Aluminum (Al):

It Can replace silicon in the quartz lattice and, when combined with natural radiation, contributes to colors like smoky quartz (gray to black).

Nickel (Ni):

Colors chrysoprase (bright green).

Copper (Cu) or Cobalt (Co):

It Can produce rare blue or green quartz varieties.

2. Natural Irradiation

Exposure to natural radioactive sources can cause changes in the oxidation state of impurities within quartz, resulting in color changes.

Amethyst: Radiation modifies iron ions to create the purple color.

Smoky Quartz: Natural radiation interacts with aluminum impurities, forming free electrons that give the smoky gray to black color.

3. Inclusions of Other Minerals

Quartz may contain microscopic inclusions of other minerals that contribute to its color.

Blue Quartz: Contains inclusions of minerals like rutile or crocidolite, giving it a bluish hue.

Moss Agate: Contains green, moss-like inclusions of chlorite or hornblende.

Aventurine: Quartz with inclusions of mica, hematite, or fuchsite, creating a sparkling effect.

4. Structural Defects

Defects in the crystal lattice, such as missing or displaced atoms, can alter the way light interacts with the mineral.

Milky Quartz: Results from tiny fluid or gas inclusions scattered within the quartz, causing a cloudy appearance.

Opalescent or Cat's Eye Effect: Arises from fibrous or layered inclusions within the quartz.

5. Heat Treatment and Artificial Alterations

Some quartz colors are enhanced or created by heating or irradiation in laboratories.

Citrine: Often created by heating amethyst.

Prasiolite: Green quartz formed by heating amethyst or smoky quartz.

Bright-colored Agates: Often dyed artificially to enhance their appearance.

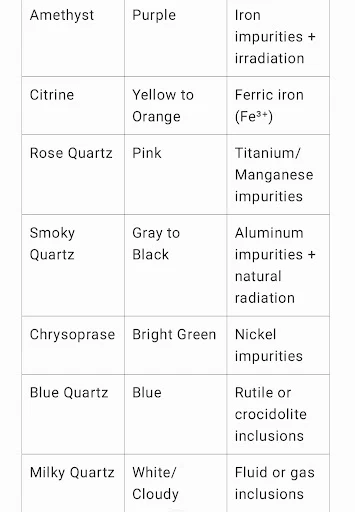

 Table of Causes for Common Quartz Varieties

Occurrence:

Quartz is one of the most abundant minerals in the Earth's crust and occurs in igneous, metamorphic, and sedimentary rocks.
